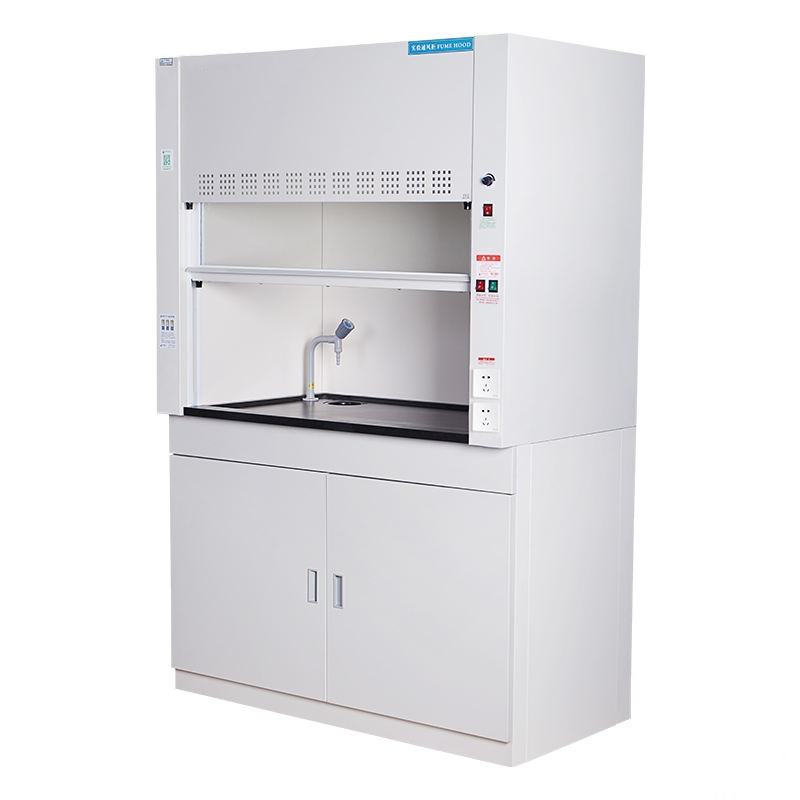

AY-FH-080 Ducted Benchtop Fume Hood
AY-FH-080 Ducted Benchtop Fume Hood
AY-FH-080 Ducted Benchtop Fume Hood
AY-FH-080 Ducted Benchtop Fume Hood

AIYI offers Ducted Benchtop Fume Hood with an air volume of 1850 m³/h to maintain proper face velocity for user safety. It has energy-efficient fans that maintain consistent airflow while reducing power consumption. The exhaust system connects to external ventilation, preventing indoor air contamination. This unit removes hazardous fumes via a dedicated duct, ensuring a safer lab environment.

AY-FH-080 Ducted Benchtop Fume Hood

Select the number of specifications

Please check the product information you want!

Product Detail

Key Features

  • Compact benchtop design—saves valuable laboratory floor space.
  • All-steel exterior structure—sturdy, durable, and easy to clean.
  • Anti-corrosion flame-retardant inner chamber—resists chemical attack and enhances fire safety.
  • Adjustable safety face velocity—adapts to different experimental requirements.
  • One-key full speed / variable speed switching—flexible airflow control.
  • Built-in current overload protection—safe and reliable electrical operation.
  • 5mm tempered glass anti-explosion viewing window—clear visibility with enhanced safety.
  • Optional 1850m³/h brushless fan—quiet, efficient, and maintenance-free exhaust.
  • 3-meter anti-corrosion exhaust hose included—ready for immediate installation.

Technical Specifications

ModelAY-FH65AY-FH80AY-FH100AY-FH120AY-FH150
Desktop Type (mm)650*650*1000800*650*10001000*650*10001200*650*10001500*650*1000
Integral Type (mm)/800*650*19001000*650*19001200*650*19001500*650*1900
Operation Area (mm)450*530*750600*530*750800*530*7501000*530*7501300*530*750
Air Volume1850m³/h
Exhaust Diameter250mm
Fan Power110W
Lighting PowerLED 20W
Rated Power2000W
Noise50dB
Face VelocityInternational Standard Face Velocity 0.5m/s
Voltage220V
Cabinet Body1.0mm thick cold-rolled steel plate, surface pickled and sprayed with epoxy resin coating, acid-alkali resistant, cabinet body is white
Operation Area Interior5mm thick anti-multiplication special board (Antibacterial Board), acid-alkali resistant, anti-corrosion
Countertop12.7mm thick black solid core physicochemical board countertop, optional ceramic, marble, stainless steel countertop
